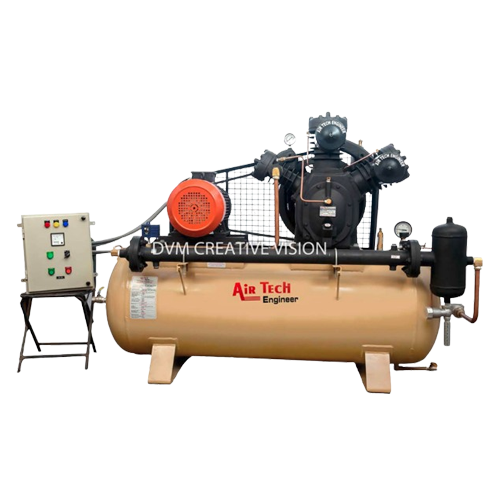

Multistage heavy - duty compressors are designed for high pressure operation up to 70.31 kg / cm2g (1000 psig). These compressors are used in packages for Pet blowing, Valve And System Testing, Diesel Engine Starting, Laboratory Test Work, Space And Aviation Industries, Air Blast Circuit Breaking, Dairy, Marine And Military Applications etc.
| Model | Motor hp | No. of Cylinders | Cfm | Maximum Pressure | Air Receiver (ltrs.) | ||
|---|---|---|---|---|---|---|---|
| pd | fad | psig | kg./cm2g | ||||
| AT 331 | 3.00 | 2 | 7.40 | 4.80 | 500 | 35.15 | 150 |
| AT 107 T2 | 7.50 | 2 | 24.75 | 14.50 | 500 | 35.15 | 300 / 500 |
| AT107 T2 | 12.50 | 2 | 36.00 | 21.60 | 500 | 35.15 | 300 / 500 |
| AT 115 T2 | 15.00 | 3 | 41.25 | 31.41 | 500 | 35.15 | 500 |
| AT 115 T2 | 20.00 | 3 | 49.50 | 37.70 | 640 | 45.00 | 500 |
