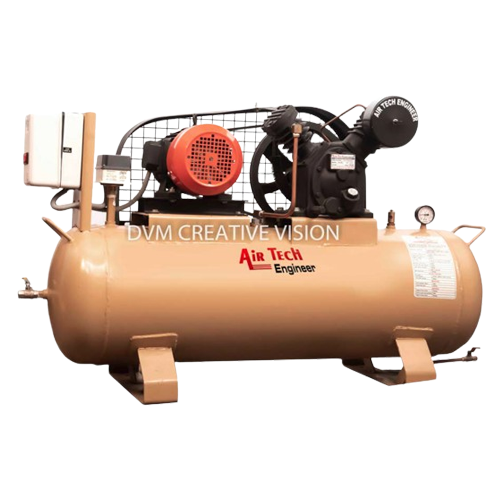

The Compressor having one / two / three piston and cylinder of the same bore size are Single Stage Compressors. The function of each piston is to compress the air from the atmosphere to the final destination.
Single Stage Compressors are ideal for a multitude of small business uses including Pneumatic tools, Panel spray painting, Nailers, Staplers, Blow guns, Liquid transfer, Graniting and Cleaning. It is a reliable source of low pressure air for numerous application like instrumentation, process and boiler fuel oil automization, Chemical Industries, Filtration Plant, Blow Moulding etc.
| Model | Motor hp | No. of Cylinders | piston displacement Cfm | Maximum Pressure | Air Receiver (Ltrs.) | |
|---|---|---|---|---|---|---|
| psig | kg/cm2g | |||||
| AT S2 | 2.00 | 2 | 8.25 | 125 | 8.78 | 100 / 150 |
| AT S3 | 3.00 | 2 | 13.75 | 125 | 8.78 | 150 |
| AT 335 | 3 / 5 | 2 | 14.85 / 20 | 80 | 5.62 | 150 / 225 |
| AT 344 | 5 / 7.5 | 2 | 26 / 34 | 80 | 5.62 | 225 / 300 |
| AT 355 | 7.5 / 10 | 2 | 40 / 52.8 | 80 | 5.62 | 225 / 300 |
| AT 171S2 | 12.5 / 15 | 2 | 88 / 95 | 40 | 2.81 | 300 / 500 |
| AT 115S2 | 15 / 20 | 3 | 99 / 132 | 40 | 2.81 | 500 |
